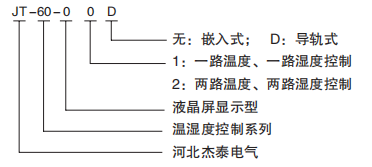

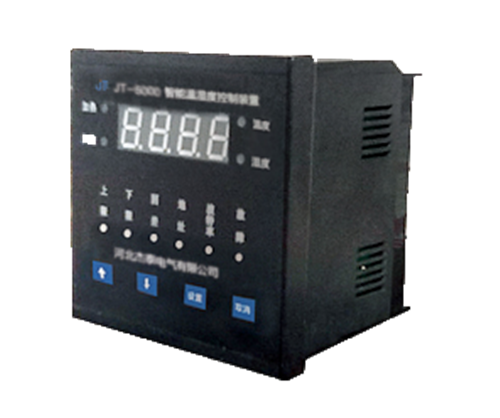

One、Model specification

Two、Technical indicators

Working power: ac100-240v 50Hz, DC90 ~ 335V.

Note: this device is DC110V, DC220V, AC220V general.

The temperature and humidity sensor.

Road number: temperature and humidity one body (jt-6001: all the way; Jt-6002: two roads)

Temperature measurement range: - 40 ~ 123.8 ℃ temperature measuring accuracy: plus or minus 0.5 ℃

Humidity measurement range: 0 ~ 99.9%RH moisture measurement accuracy: + 4.5%RH.

The LCD screen displays the range.

Temperature: - ~ 123.8 ℃, humidity 40 0 ~ 99.9% RH

The factory defaults.

Temperature limit: 20 ℃ temperature limit: 50 ℃

Humidity limit: 80%RH.

Temperature back to poor: 5 ℃

Humidity correction: 5%RH.

(1) the heater and fan road number: jt-6001 road heater and fan; Jt-6002 heater.

Control contact capacity: AC250V/5A (DC30V/5A)

Control output type: active AC220V.

Output type: no source normal open contact, AC250V/5A (DC30V/5A)

Power consumption: no more than 3W.

Three、Functions and features

The function of number setting adopts full digital sensor, strong anti-interference ability, high precision, liquid crystal display and so on.

Four、Device profile and opening size.

The dimensions of the embedded controller are 48 x 48 * 85mm (long x width x depth), and the size of the screen aperture is 45 * 45mm (length x width). The overall dimension of the guide type controller is 72.6 * 8x65.7mm (length x width x depth)

Five、Device wiring terminal diagram

Six、Installation

Control: panel mounting, guide rail mounting.

Temperature and humidity sensor: wall-mounted installation.
